H&S 19mm Moto Riser Bar Conversion Kit for STACYC 12eDRIVE & 16eDRIVE

SAVE 50% ON THE H&S STEM WHEN BUNDLED WITH THIS KIT

Choose a stem color to match or complement your build.

H&S Stem 25.4mm Bar Clamp: AVAILABLE HERE

IMPORTANT STEM FITMENT INFORMATION

This H&S handlebar uses a 25.4mm center clamp and mounts in a front-load stem.

The following setups use a 22.2mm top-load stem and require the H&S 25.4mm Stem Bar Clamp:

• KTM-branded STACYC models
• GASGAS-branded STACYC models
• Husqvarna-branded STACYC models
• All OEM STACYC riser-bar kits

A top-load stem holds the handlebar on top of the stem. The compatible H&S 25.4mm front-load stem holds the handlebar in front of the stem.

If your STACYC still has the standard 25.4mm front-load stem, this conversion kit mounts directly without replacing the stem.

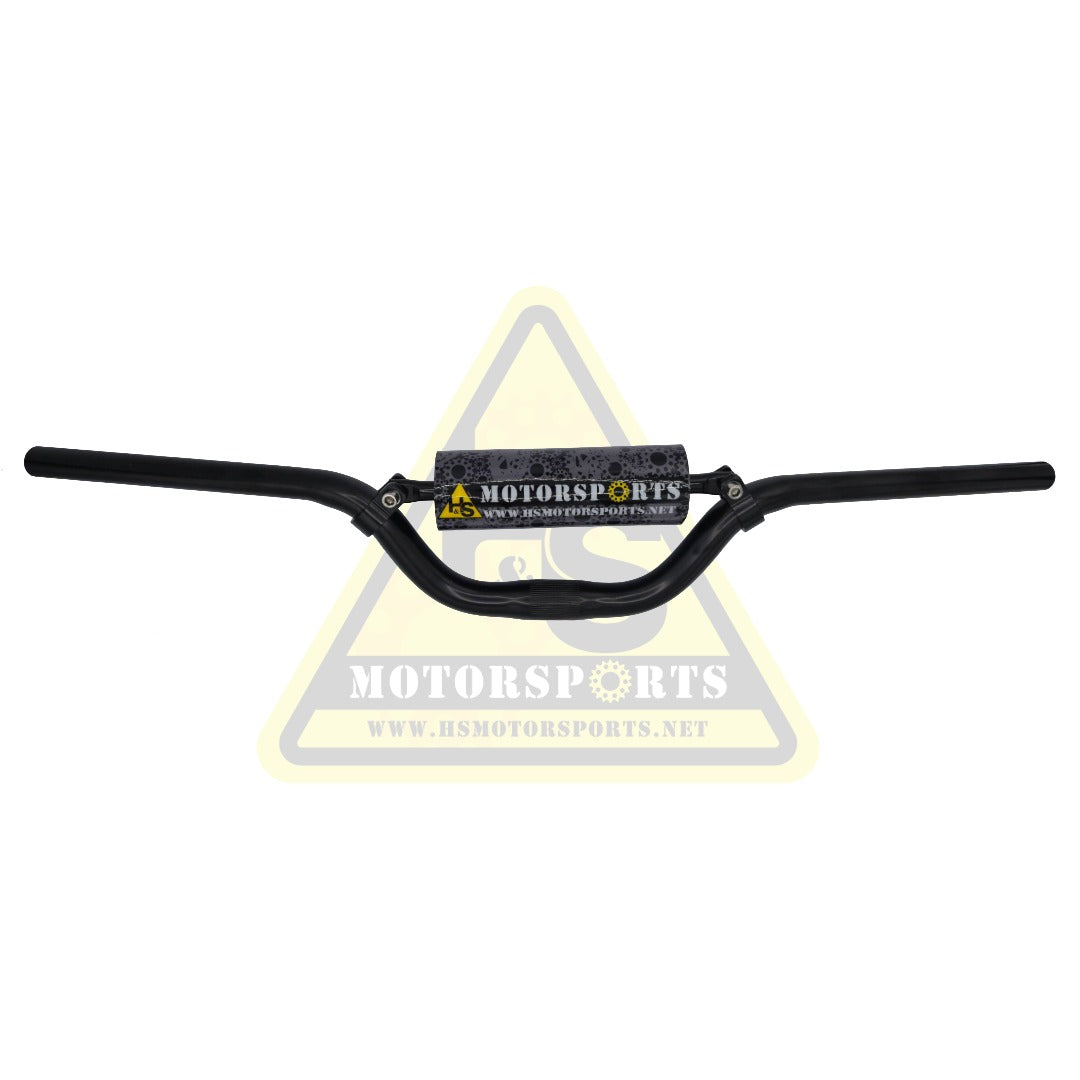

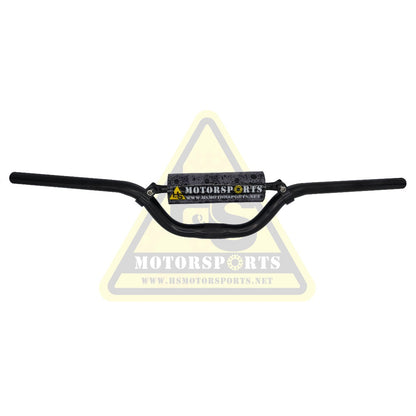

H&S 19mm Moto Riser Bar Conversion Kit

The H&S 19mm Riser Bar Conversion Kit gives STACYC 12eDRIVE and 16eDRIVE riders a thinner grip and throttle area, a taller riding position, and a wider moto-style handlebar.

The 19mm grip area is better suited to smaller hands than a standard 22mm setup. The 4-inch rise also provides additional room as the rider grows, while the adjustable bar width lets you size the setup for the rider.

The kit now includes standard 19mm grips for a complete installation. For an upgraded grip, we recommend ODI Mini Grips:

ODI MINI GRIPS AVAILABLE HERE

FEATURES

• 19mm handlebar ends for the throttle and grips
• 25.4mm center clamp diameter
• Approximately 4-inch rise
• 630mm overall width
• Cut marks allow the bar to be trimmed down to approximately 508mm

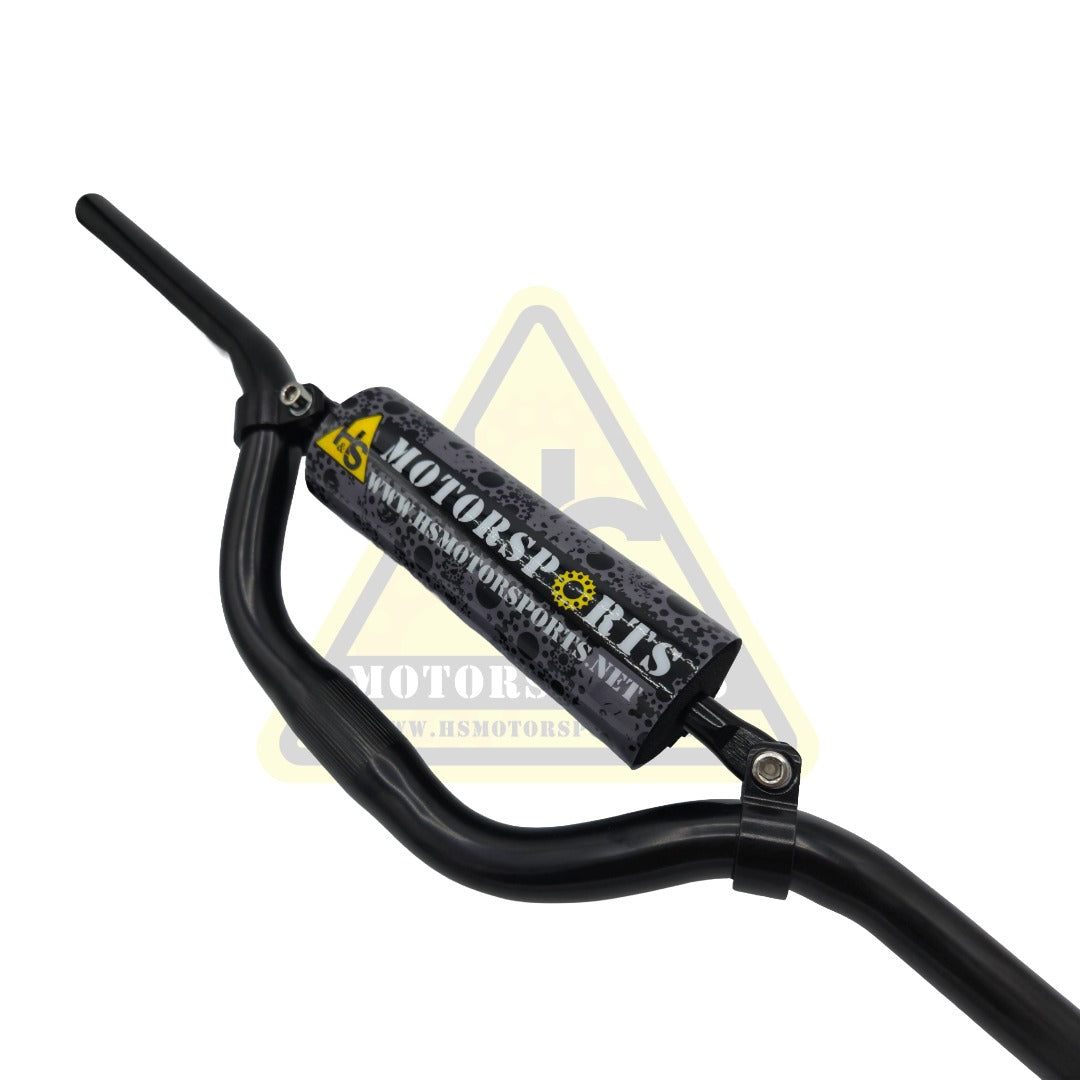

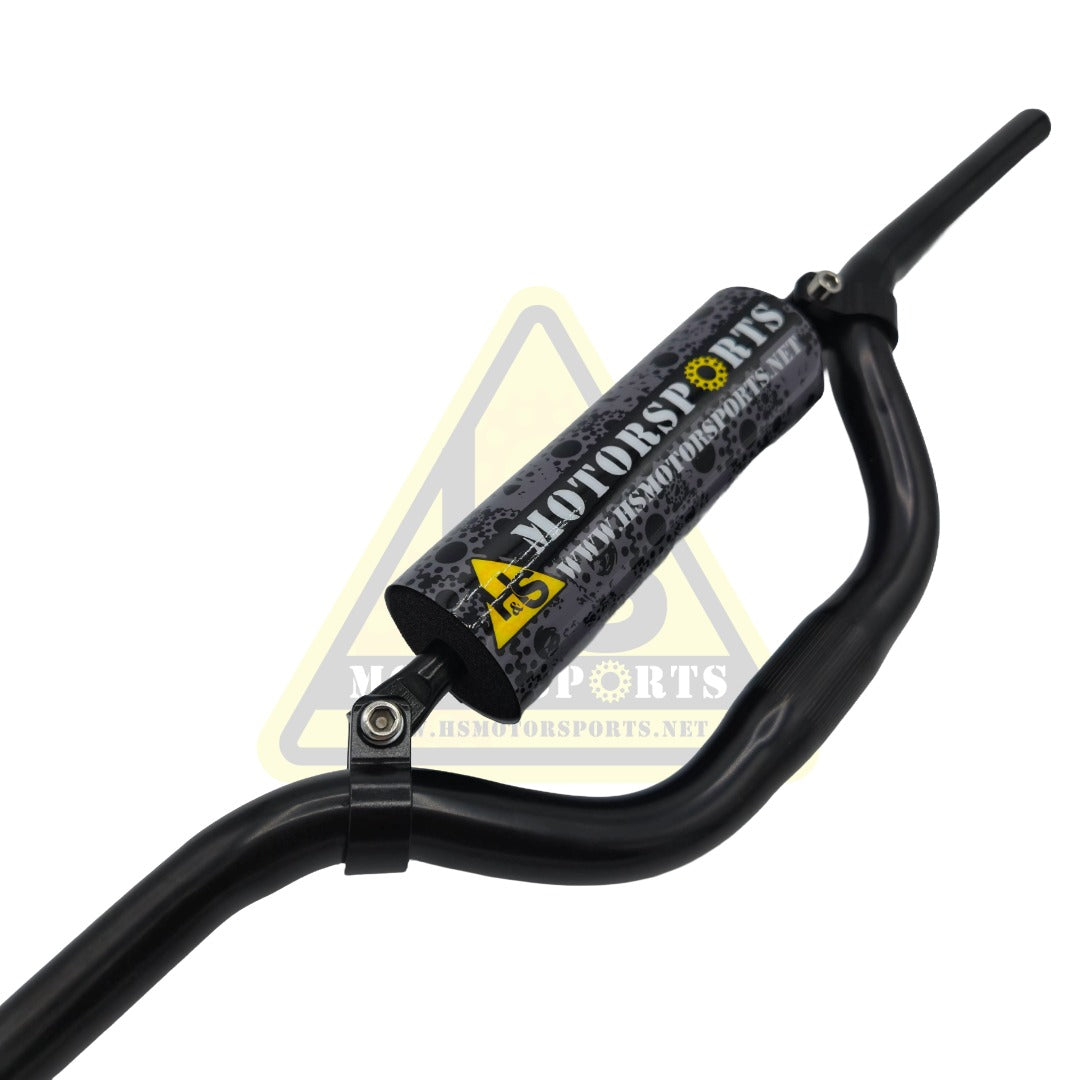

• Removable moto-style crossbar
• H&S bar pad included
• H&S 19mm throttle included
• Standard 19mm grips included
• Brake-perch shim adapter included
• Matching throttle wiring harness included
• Aluminum handlebar construction
• Direct installation with a compatible 25.4mm front-load stem

FITMENT

Designed for:

• STACYC 12eDRIVE with Brushed and Brushless Motor
• STACYC 16eDRIVE with Brushed and Brushless Motor

This conversion kit is primarily intended for bikes currently using the thicker 22mm handlebar, throttle, and grip setup.

Handlebar measurements can be confusing because two different diameters matter:

• Bar ends: 19mm, where the throttle and grips are installed
• Center clamp: 25.4mm, where the handlebar attaches to the stem

Some newer STACYC 12eDRIVE models already use 19mm controls. Check the existing bar-end diameter before ordering; a bike that already has 19mm controls may only need the separate H&S 19mm Riser Handlebar instead of the complete conversion kit.

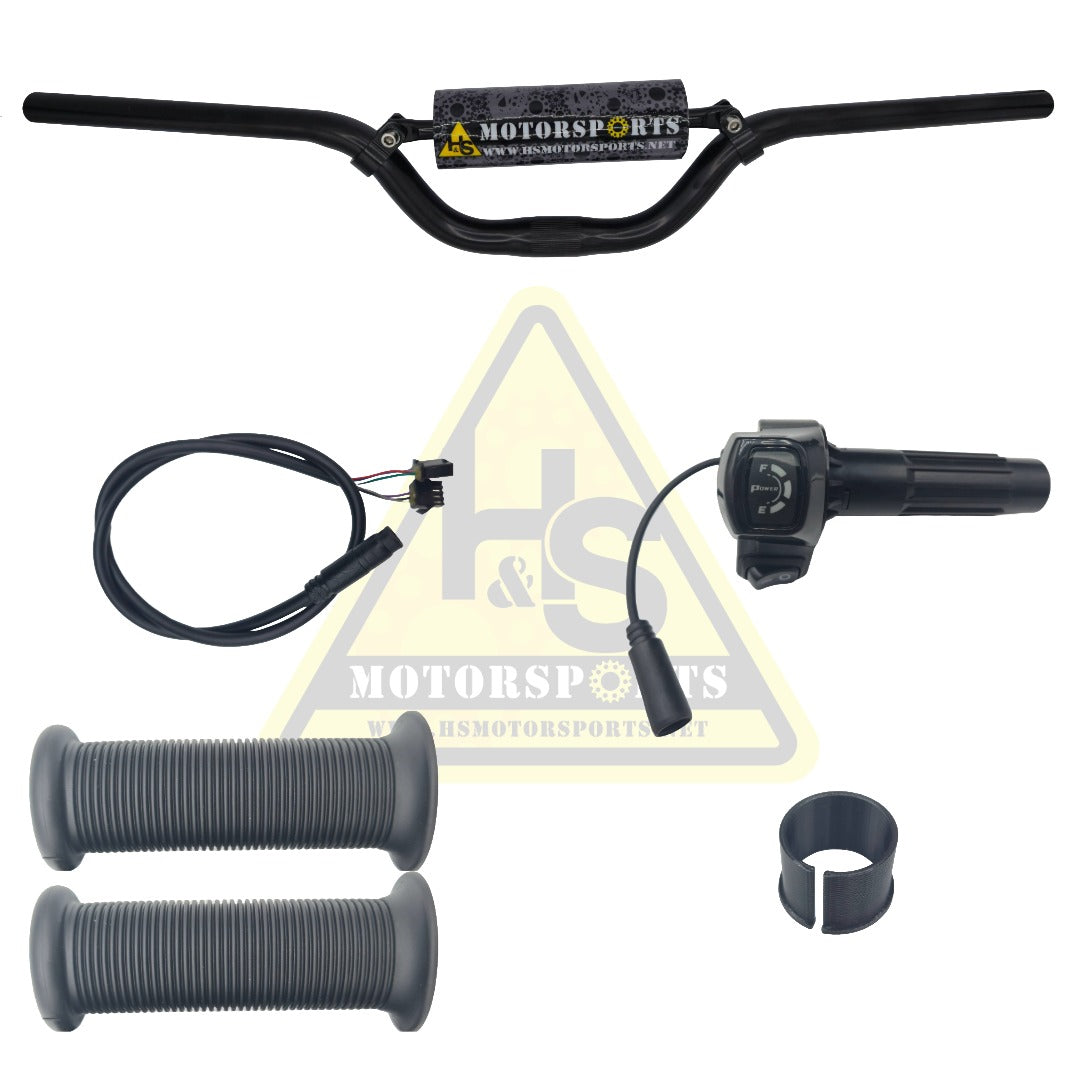

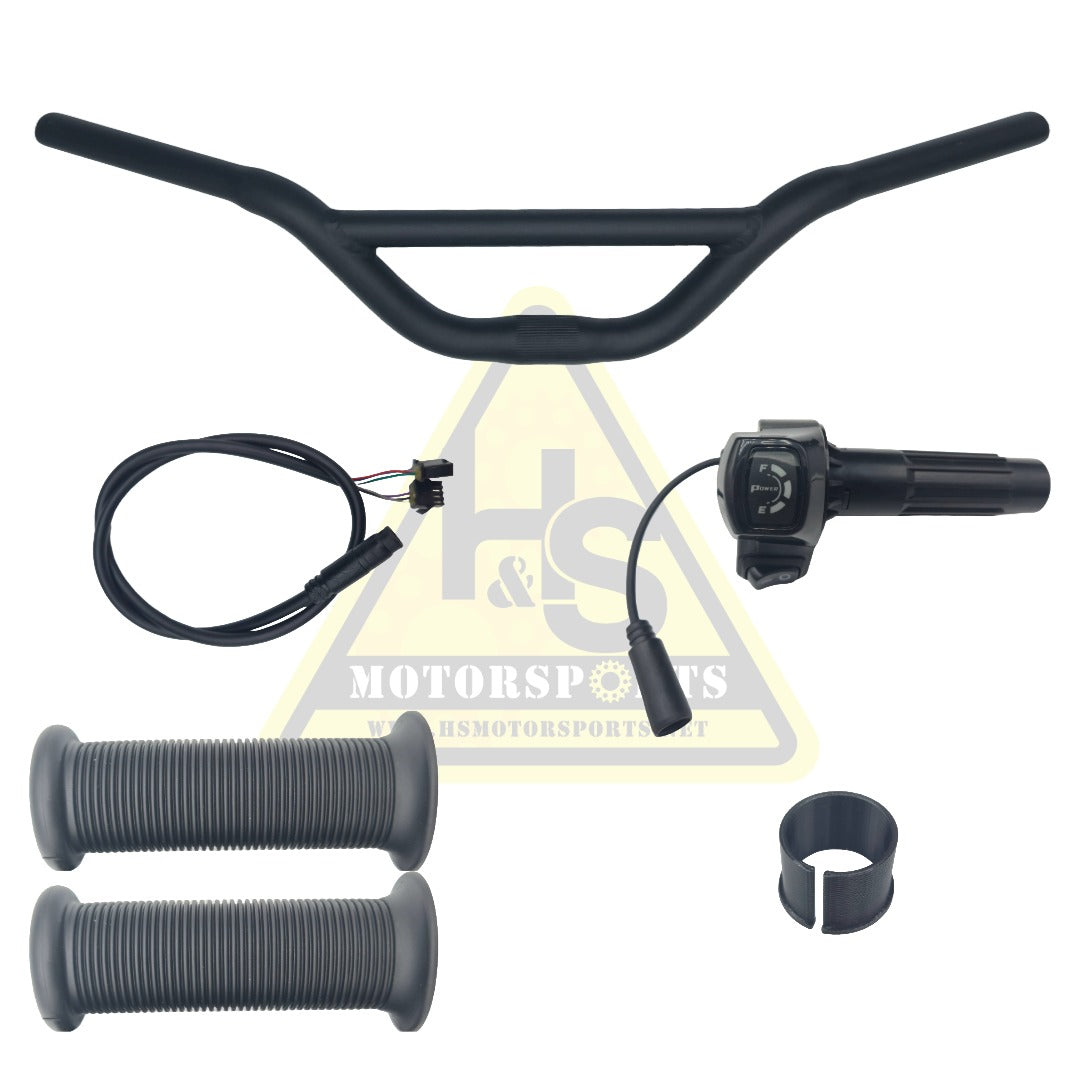

WHAT'S INCLUDED

• H&S 19mm moto-style riser handlebar
• Removable crossbar
• H&S bar pad
• H&S 19mm throttle
• Standard 19mm grips
• Brake-perch shim adapter
• 19mm throttle wiring harness

NOTES

• Only the current moto-style handlebar is offered with this kit.
• ODI Mini Grips are optional and sold separately.
• Verify both the bar-end diameter and stem-clamp style before ordering.
• KTM, GASGAS, Husqvarna, and all OEM STACYC riser-bar kits require the H&S 25.4mm Stem and Bar Clamp.
• Installation of an aftermarket throttle may affect portions of the STACYC factory warranty related to the throttle, electrical system, controller, or drivetrain. By installing this product, the customer accepts responsibility for any warranty limitations established by STACYC.
