H&S Motorsports, LLC.
Save 50% on the H&S Stem When Bundled with This Handlebar
Add the H&S 25.4mm Stem and Bar Clamp to your 19mm Riser Handlebar and save 50% on the stem. Choose a stem color to match or complement the bike.

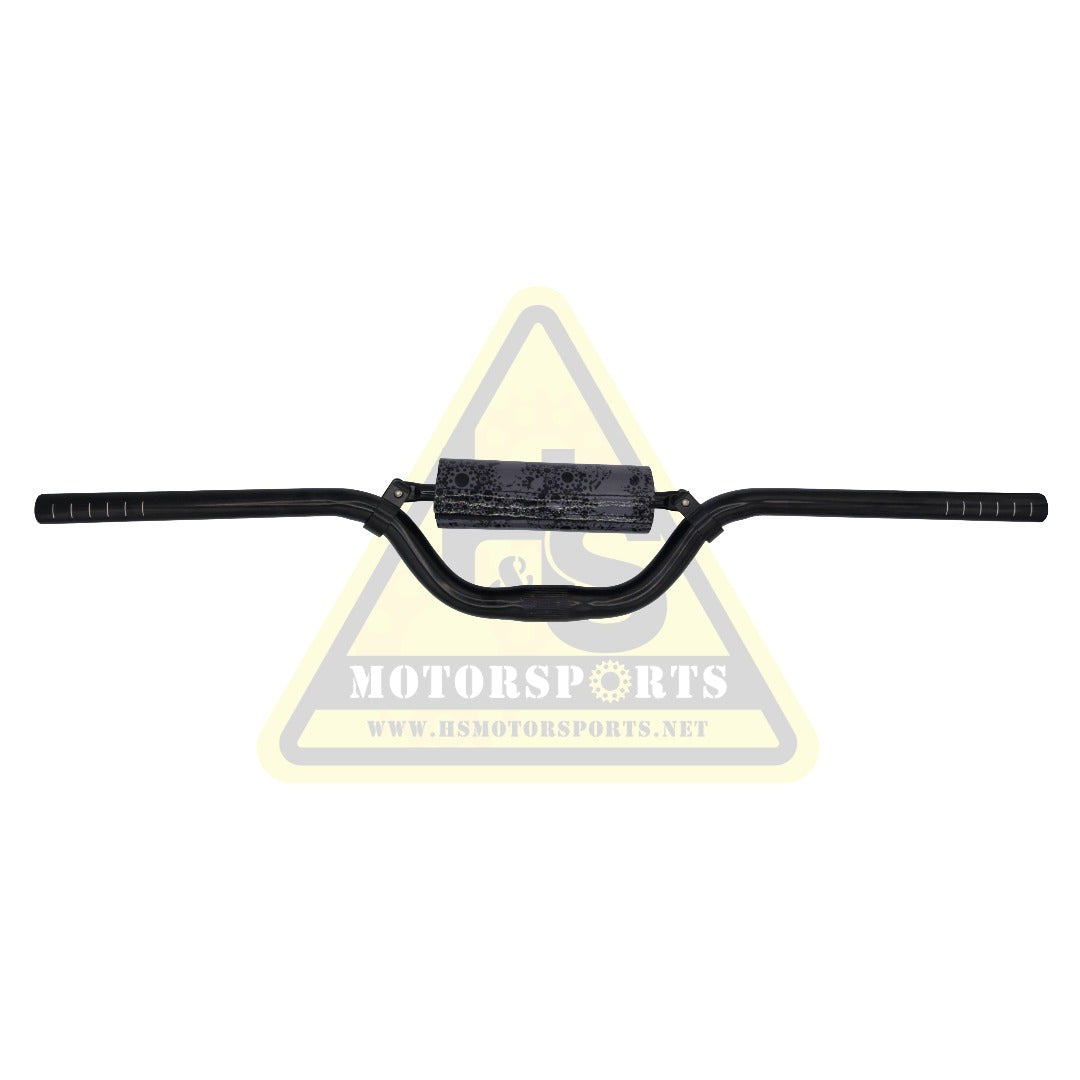

The H&S 19mm Riser Handlebar gives riders a 4-inch rise, a wider moto-style riding position, and a thinner 19mm grip area. The 630mm bar includes cut marks that allow it to be trimmed down to approximately 508mm to fit the rider.
This is the standalone handlebar for bikes already equipped with a 19mm throttle, grips, and compatible brake controls. Bikes currently using 22mm controls may require the complete H&S 19mm Conversion Kit.
Features
- 19mm handlebar ends for the throttle and grips
- 25.4mm center clamp diameter
- Approximately 4-inch rise
- 630mm overall width

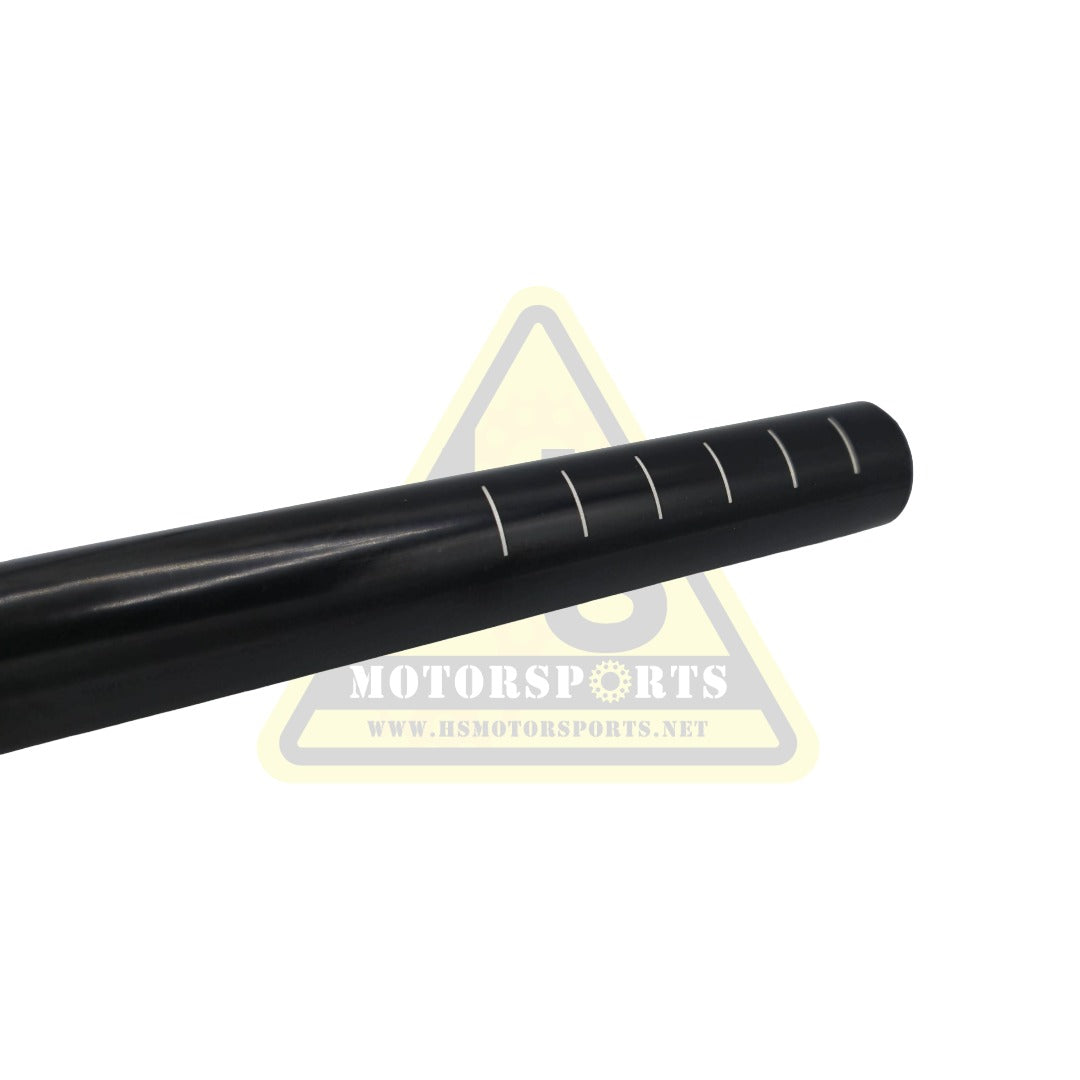

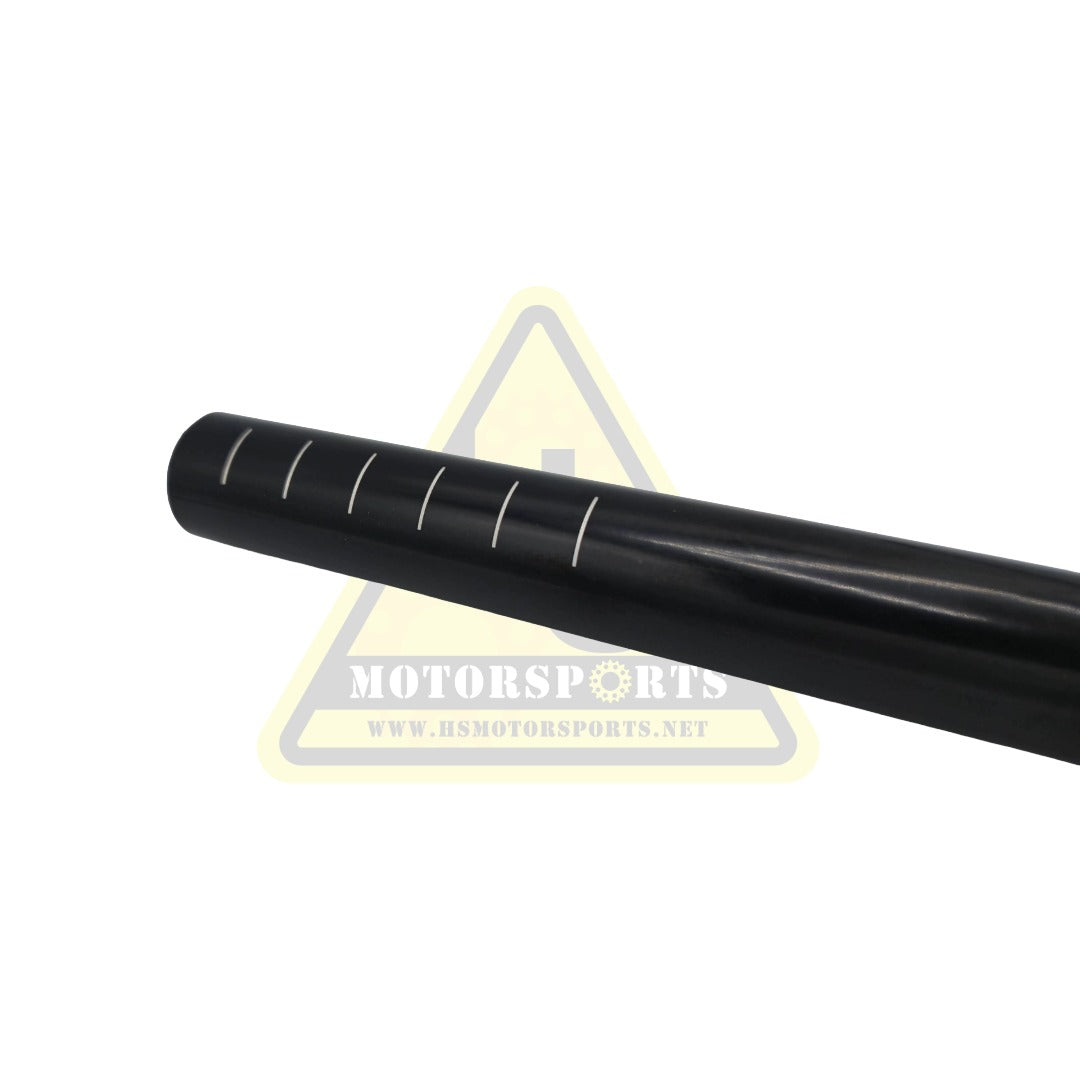

- Cut marks allow trimming down to approximately 508mm
- Removable moto-style crossbar
- H&S bar pad included
- Aluminum construction
- Black finish with alignment and cut marks
Fitment
- STACYC 12eDRIVE equipped with 19mm controls
- STACYC 16eDRIVE equipped with 19mm controls
- STACYC 16eDRIVE Elite
- STACYC 18eDRIVE
- STACYC 20eDRIVE
Important Stem Information
All H&S handlebars use a 25.4mm center clamp.
The following setups use a 22.2mm top-load stem and require the H&S 25.4mm Stem and Bar Clamp:
- KTM-branded STACYC models
- GASGAS-branded STACYC models
- Husqvarna-branded STACYC models
- STACYC models equipped with an OEM riser-bar kit
- STACYC 20eDRIVE Team Edition models using the top-load stem
If the bike already has the standard 25.4mm front-load stem, the handlebar mounts without replacing the stem.
Cutting Notes
Check the placement of the throttle, brake lever, and grips before cutting. Different control lengths can affect the minimum usable width.
Cut evenly from both sides using the marked cut lines. Once the handlebar is cut, it cannot be returned to its original width.
What's Included
- H&S 19mm moto-style riser handlebar
- Removable crossbar
- H&S bar pad
Converting from 22mm Controls?
The complete conversion kit includes the 19mm handlebar, throttle, grips, brake-perch shim, and matching throttle wiring harness:
H&S 19mm Moto Riser Bar Conversion Kit
