Sotion Motor upgrade For Surron Light Bee E-Moto

Sotion Motor upgrade For Surron Light Bee E-Moto, and Segway X260 electric motorbikes is a 72V high-power, aftermarket performance upgrade.

Sotion Motor for Sur-Ron Features

• High-Power 72V Motor Upgrade
• Plug-And-Play: No Modifications Required
• Durable Internal Magnet Motor (IPM) Design
• Light Bee (FW01) Power: 13kW / 26kW Peak
• Choose Either Encoder or Hall sensor

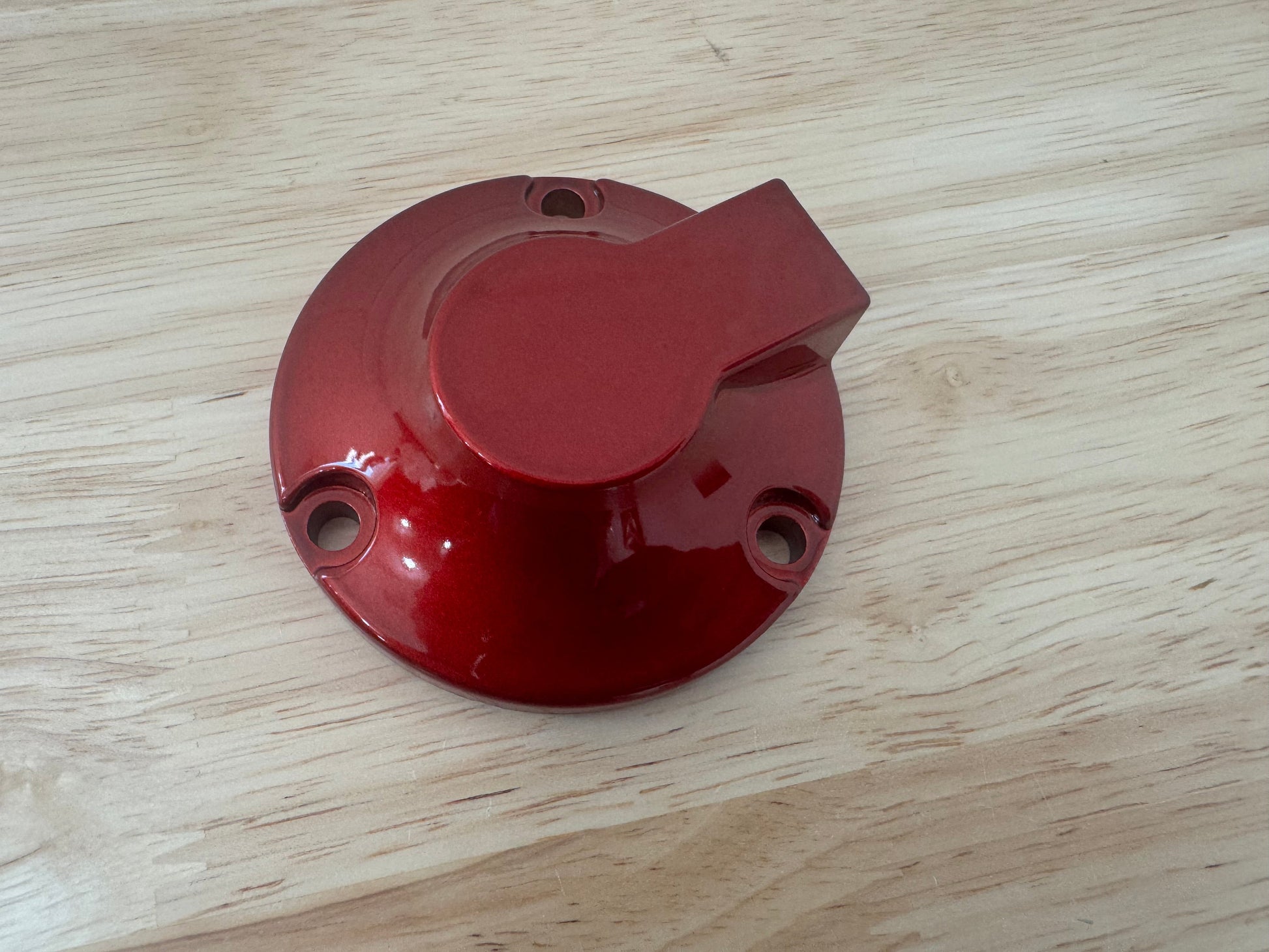

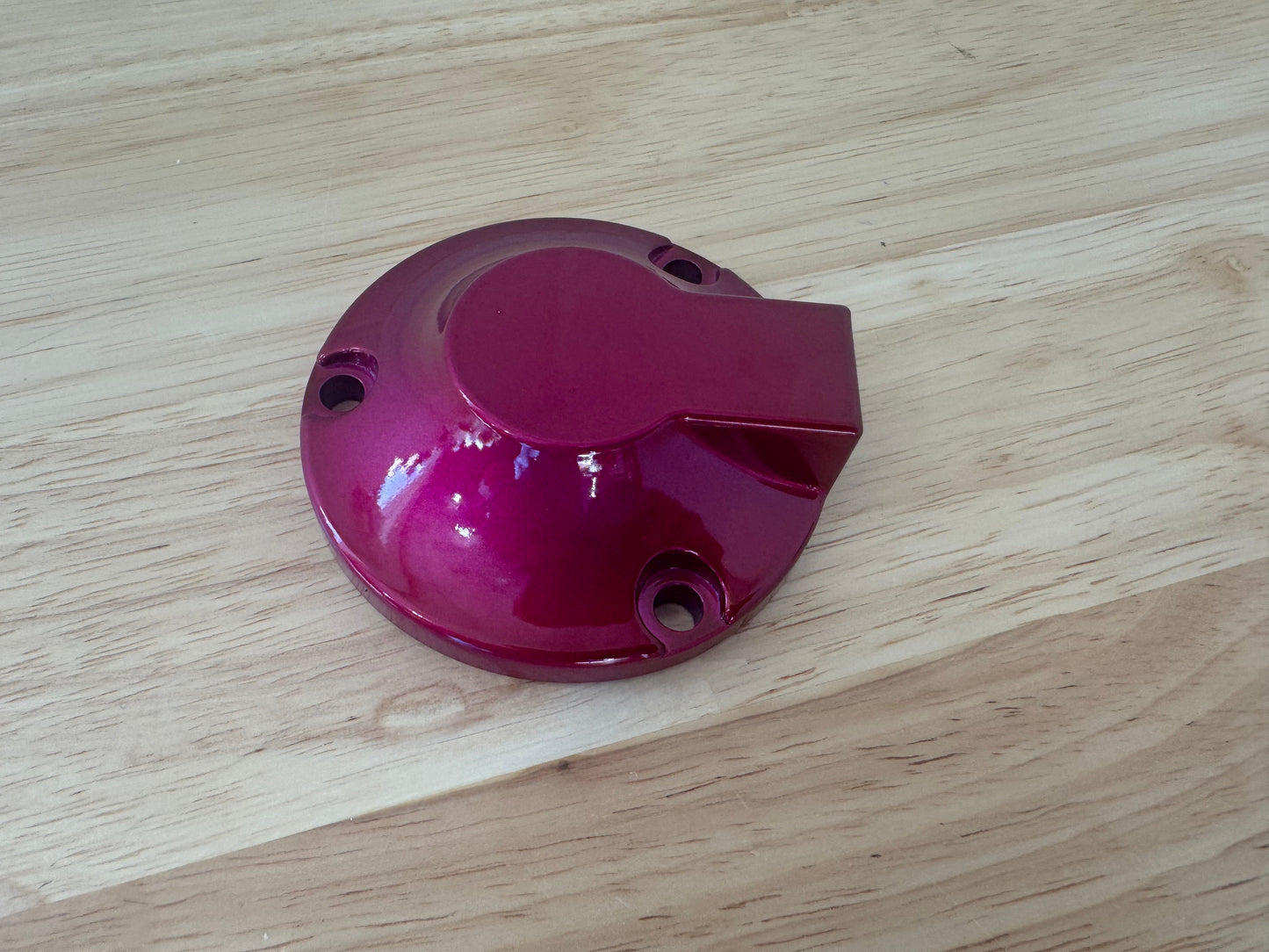

• Comes with Gray Sensor cover, you can purchase a colored one separately

Sur-Ron Light Bee Sotion Motor Specs

• Model: FW01
• Motor Size: 180mm x 145mm
• Motor Weight: 23.5lbs (10.7kg)
• Rated Voltage: 72V
• Rated Power: 13kW
• Peak Power: 26kW
• Rated Torque: 22 N.m
• Peak Torque: 65 N.m
• Peak Phase Current: 800A
• Rated Speed: 5200 RPM
• Top Speed: 9000 RPM
• Number of Pole Pairs: 5

Bike Fitment:

• Surron Light Bee
• Segway X260
• Talaria XXX - Some modifications required, see video Below

Encoder Or hall sensor?

• That depends on what bike and controller you have.
• Often times you can use either the encode or hall sensor but these are out recommendations for certain controllers.

Encoder:

• If you are using it with a Nucular Controller

Hall Sensor:

• If you are using with an X-9000
