H&S Universal Cable Battery Adapter for STACYC eDRIVE

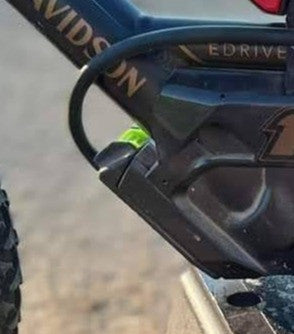

The H&S Universal Cable Battery Adapter provides a wired connection between a STACYC eDRIVE and your own battery-brand adapter. This is the right option when you want to use a battery brand that is not already available in one of our ready-to-connect STACYC battery adapters.

This product does not include a battery-brand adapter. You connect your own compatible battery adapter to the universal leads.

Features

• Universal wired connection for STACYC eDRIVE models
• Allows you to use your own battery-brand adapter
• Compatible with 20V and 40V STACYC platforms

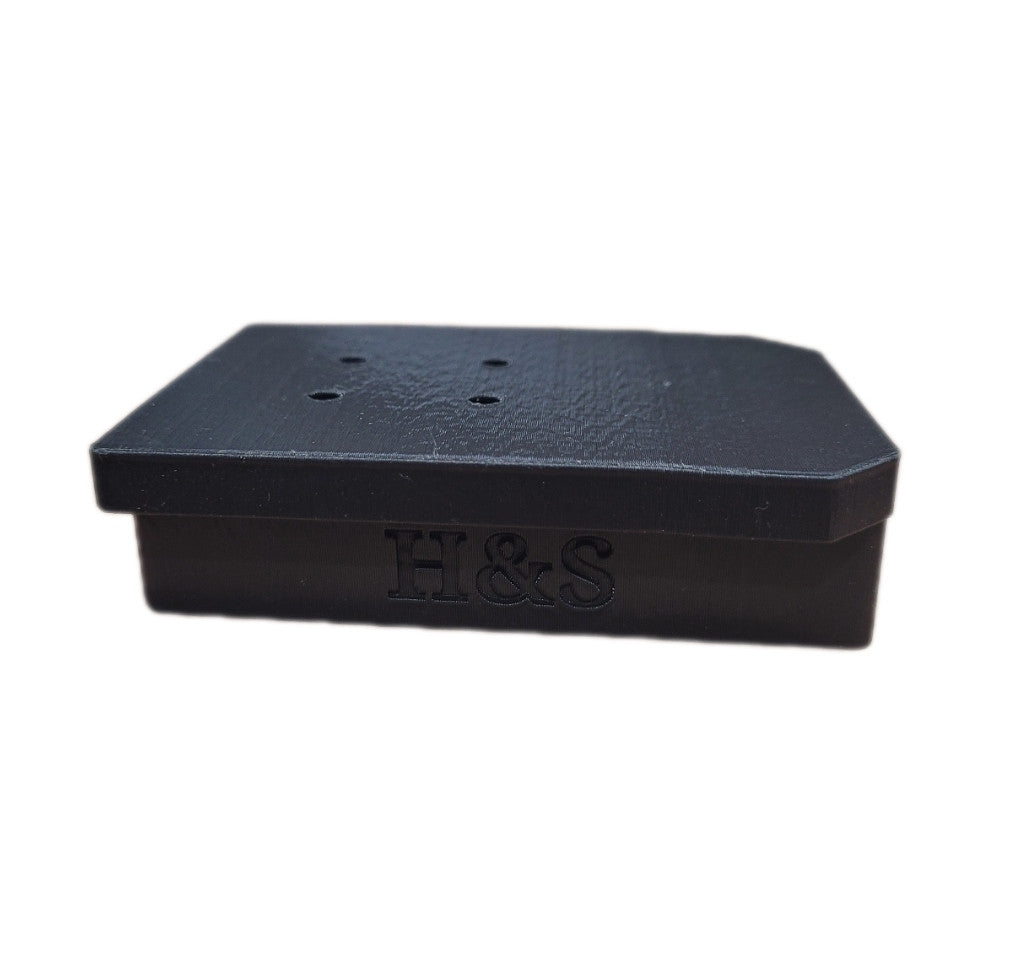

• Optional top-tube mounting plate available for standard 12eDRIVE and 16eDRIVE models
• 30-day warranty against manufacturing defects

Fitment

Adapter cable fits:

• STACYC 12eDRIVE
• STACYC 16eDRIVE
• STACYC 16eDRIVE Elite
• STACYC 18eDRIVE
• STACYC 20eDRIVE

The optional universal top-tube mounting plate fits the STACYC 12eDRIVE and 16eDRIVE only. It is not compatible with the STACYC 16eDRIVE Elite, 18eDRIVE, or 20eDRIVE.

Wiring

• Blue wire: Ground
• Brown wire: Positive

Verify the battery-adapter polarity before connecting the battery or applying power.

Important Battery Information

• Adapter cable only; battery and battery-brand adapter are not included.
• We recommend using batteries no larger than 5Ah. A 4Ah or 5Ah battery is the preferred range.
• Larger 8Ah or 9Ah batteries can place additional load on the controller and increase the possibility of electrical failure.
• Aftermarket battery adapters bypass some of the protection built into the original STACYC battery system.
• Using an aftermarket battery may affect or void portions of the STACYC factory warranty covering the battery, controller, motor, or other electrical components.
• Damage caused by incorrect wiring, reversed polarity, misuse, or an incompatible battery is not covered.

Ready-to-Connect Battery Adapters

If you use one of the battery brands we already support, our ready-to-connect adapters provide a cleaner installation without needing to wire your own battery-brand adapter.

For standard 20V STACYC 12eDRIVE and 16eDRIVE models:

H&S STACYC 12/16 20V Cable Battery Adapter

For 40V STACYC 16eDRIVE Elite, 18eDRIVE, and 20eDRIVE models:

H&S STACYC 16 Elite/18/20 40V Battery Adapter
