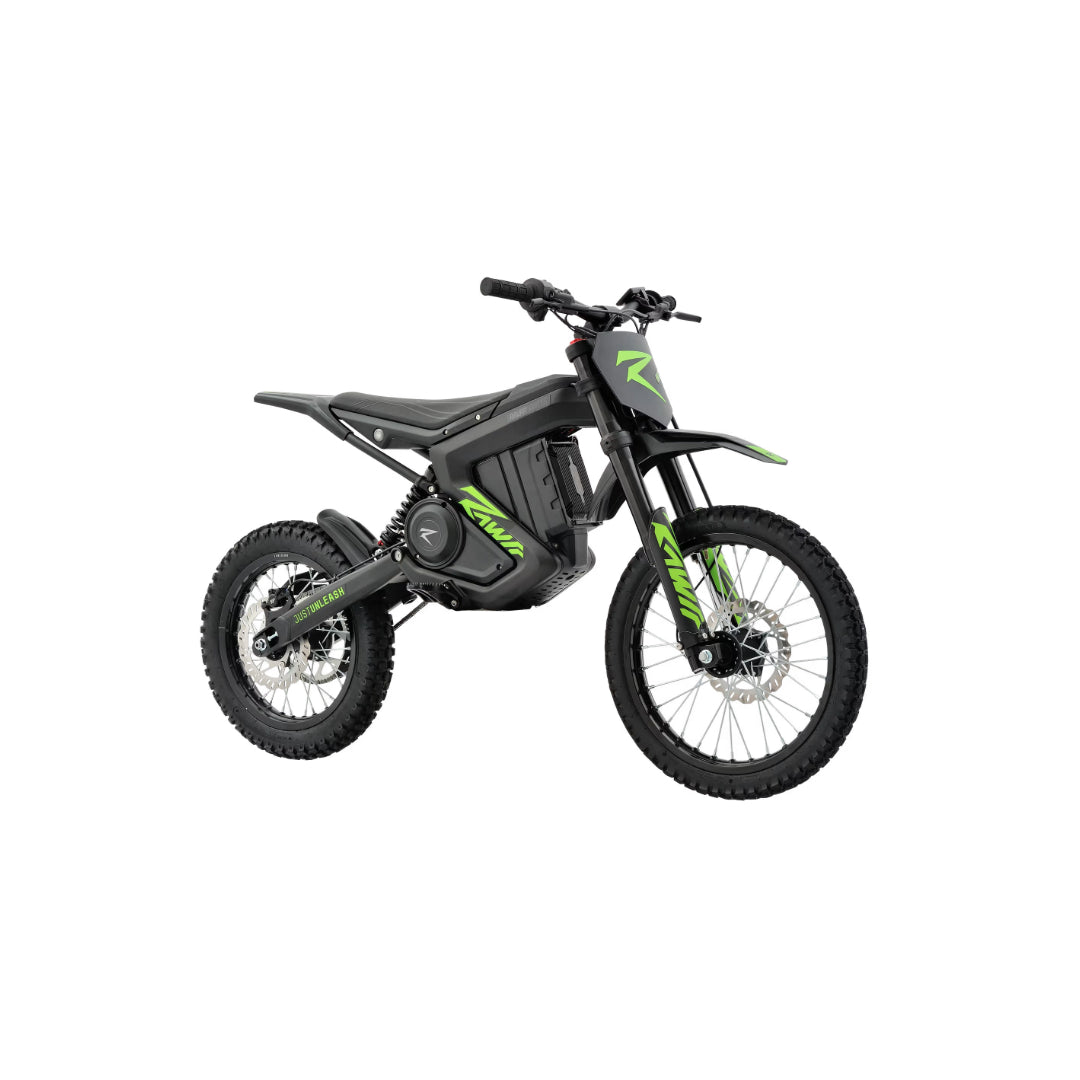

72V Rawrr Mantis Mini R & Mini R17 Electric Dirt Bike
Adventure Has No Age Limit
The all-new 72V Rawrr Mantis Mini R is built for young shredders ready to level up their riding. With two adaptable size options — the Mini R and Mini R17 — this electric dirt bike grows with your rider, making it a long-term investment in fun. Lightweight, powerful, and packed with safety features, the Mantis Mini R ensures every ride is thrilling, safe, and confidence-building.
✅ Model Variants:
Mantis Mini R
Tire Size: 14" Front | 12" Rear
Ideal Rider Height: 3.5' - 4.25'
Mantis Mini R17
Tire Size: 17" Front | 14" Rear
Ideal Rider Height: 4' - 5.6'
Both models allow for post-purchase upgrades or downsizing, adapting as your rider grows.
⚡ Technical Specifications:
Performance:
Top Speed: 46 MPH
Acceleration:
0-19 MPH: 1.8 seconds
0-31 MPH: 3.6 seconds
0-50 MPH: 10 seconds
Range: Up to 31 Miles
Max Torque: 210 NM
Max Motor Power: 4,500W
Regular Motor Power: 2,000W
Climbing Ability: Up to 45°
Safety:
Motor & Controller IP Rating: IP66
Battery & Connector IP Rating: IP55
Kill Switch: Yes
Chain Cover: Yes
Magnetic Leash Kill Switch: Yes
Kickstand Sensor: Yes
Brake Sensors: Yes
Electrical:
Display Type: LCD
Battery Type: Lithium-Ion
Battery Capacity: 72V 1440Wh
Battery Cycle Life: 800 Cycles
Charger Input Voltage: AC 110/220V
Charging Time: 3–6 Hours
Controller Type: FOC Sine Wave
Drive Modes: 1 / 2 / 3
Mechanical:
Brake Type: 2-Piston Hydraulic Disc Brakes
Front Fork Travel: 110mm
Motor Type: Brushless
Cooling Method: Air-Cooled
Power Delivery: Direct Chain Driven
Max Motor Operating Temperature: 85°C
Frame Material: 6061 Aluminum Alloy
📏 Measurements:
Mini R:
Height: 37.8 in
Length: 62.2 in
Width: 26.42 in
Max Ground Clearance: 9.45 in
Wheelbase: 42.24 in
Seat Height: 28.9 in
Front Tire Size: 60-100-14
Rear Tire Size: 2.75-12
Vehicle Weight (with Battery): 111 lbs
Max Payload: 165 lbs
Mini R17:
Height: 38.98 in
Length: 64.57 in
Width: 26.42 in
Max Ground Clearance: 10.63 in
Wheelbase: 42.56 in
Seat Height: 30 in
Front Tire Size: 70-100-17
Rear Tire Size: 3-14
Vehicle Weight (with Battery): 111 lbs
Max Payload: 165 lbs
