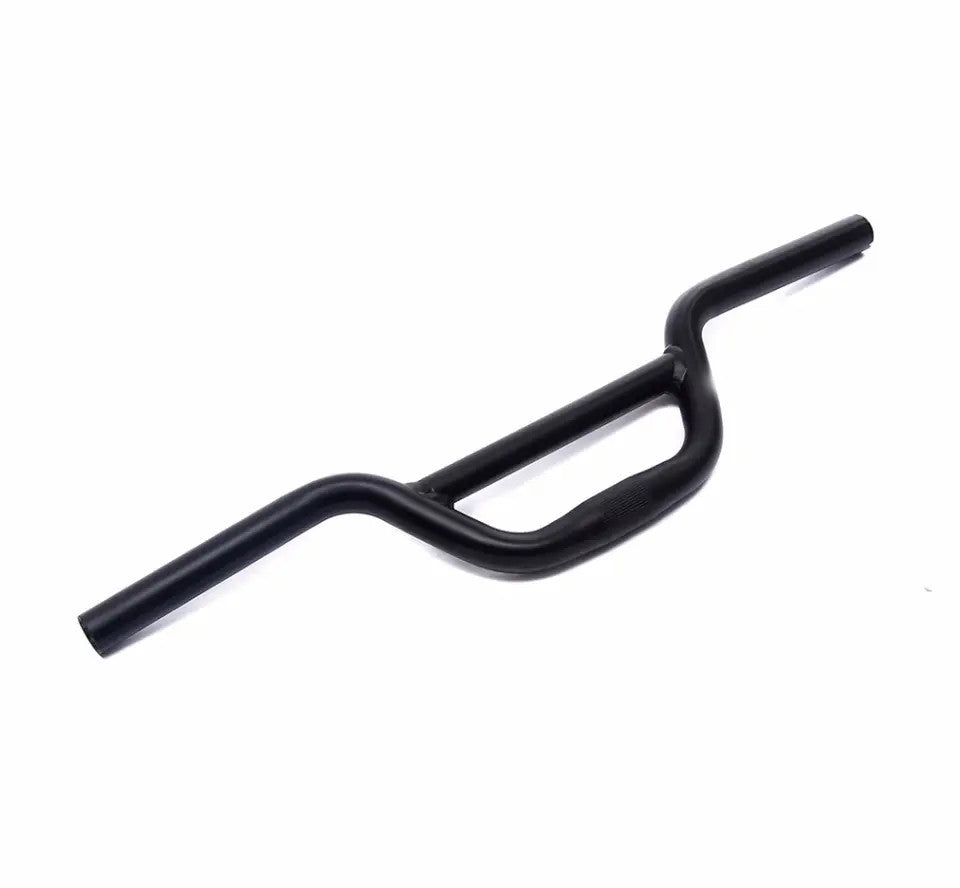

H&S 22mm Riser Handlebar for STACYC 12eDRIVE & 16eDRIVE

Save 50% on the H&S Stem When Bundled with This Handlebar

Add the H&S 25.4mm Stem and Bar Clamp to your 22mm Riser Handlebar and save 50% on the stem. Choose a stem color to match or complement the bike.

The H&S 22mm Riser Handlebar provides a taller, more comfortable riding position while retaining the bike's existing 22mm throttle, grips, and brake controls.

This is the standalone handlebar option for bikes that already have a compatible 25.4mm front-load stem. Riders who also need a stem and fork-tube spacer should use the complete H&S 22mm Bar Riser Kit.

Features

• 22mm handlebar ends for the throttle and grips
• 25.4mm center clamp diameter
• Approximately 4-inch rise
• 560mm overall width
• Aluminum construction
• H&S bar pad included
• Retains existing 22mm controls

STACYC Fitment

• STACYC 12eDRIVE with 22mm controls
• STACYC 16eDRIVE with 22mm controls

Not compatible with 19mm throttles, grips, or control setups.

Important Stem Information

All H&S handlebars use a 25.4mm center clamp.

The following setups use a 22.2mm top-load stem and require the H&S 25.4mm Stem and Bar Clamp:

• KTM-branded STACYC models
• GASGAS-branded STACYC models
• Husqvarna-branded STACYC models
• STACYC models equipped with an OEM riser-bar kit

If the bike still has the standard 25.4mm front-load stem, this handlebar mounts without replacing the stem.

Other Confirmed Fitment

• Orion RXBE 12, 16, and 20
• Orion e12s-x, e16s-x, and e20s-x
• Kawasaki Elektrode
• Xero2 Flea

What's Included

• H&S 22mm riser handlebar
• H&S bar pad

Need the Complete Kit?

The complete kit includes the 22mm handlebar, a colored H&S stem, and a 10mm fork-tube spacer:

H&S 22mm Bar Riser Kit for STACYC 12/16

A replacement H&S Brake Cable is also available separately.
