Voltaic Flying Fox 16"

Voltaic Flying Fox 16"

SEE PRICE IN CART

Full specifications, warranty & details

Introducing the "Flying Fox" Off-Road Electric Bike - a rugged ride engineered for young explorers seeking excitement and adventure! With its robust specs and advanced features, the Flying Fox is built to tackle off-road trails and conquer rough terrain while keeping safety a top priority.

Key Features:

- Boasting a 36V battery and a 500-watt motor, the Flying Fox delivers impressive power and torque for thrilling rides on any terrain.
- Choose from three power modes to match your riding style and skill level, whether you're cruising leisurely or tackling challenging trails.
- Reach speeds of up to 19 mph while maintaining safety standards, ensuring an exhilarating yet secure riding experience.
- Take on bumps and rough terrain with confidence thanks to the adjustable front forks with 80mm of travel.
- The adjustable hydraulic rear shock with lockout feature absorbs shocks and vibrations, enhancing stability and comfort on rugged trails.
- Equipped with two-piston hydraulic brakes, the Flying Fox offers reliable and responsive braking performance for confident control on any terrain.
- With a recommended age range of 6 to 9 and a maximum rider weight of 110 lbs, the Flying Fox prioritizes safety without compromising on the thrill of adventure.

Experience the thrill of off-road exploration like never before with the Flying Fox Off-Road Electric Bike - where every ride is an opportunity for new discoveries!

Browse our full collection of bikes to explore more options.

  • Suspension fork with Hydraulic lockout, adjustable 40mm travel
  • Removable battery pack. 36V new technology high rate discharge cell lithium Ion battery allowing riders to hit the road for 18mph max speed
  • 16 ” off road tire with alloy spoked rim
  • PEAK POWER: 750W
  • BIKE WEIGHT: 41 LBS
  • BATTERY: 36V
  • MAX SPEED: High:19mph , Mid: 14mph, Low: 10mph,
  • RANGE : 35-60 minutes

POWER

  • Power Motor Type : Air-cooled, brushless, in-wheel
  • Power Modes: 3 modes (High / Mid/ Low)
  • Max Speed by Mode: H 19mph / Mid 14mph / L 10mph
  • Drive System: Direct hub motor
  • Battery Type: Lithium-ion (Removable, High rate discharge cell)
  • Battery Running Time 45-60 minutes
  • Battery Charge Time 1hours
  • Maximum Battery Charge Cycles: 500 (after which 80% of original charge capacity)

PERFORMANCE

  • Frame Type: Aluminum
  • Front Adjustable Suspension fork
  • Rear Air Adjustable Shock
  • Front Tire: 18 x 4 offroad tire
  • Rear Tire: 18 x 4 offroad tire
  • Front Brakes-Rear Brakes: F/R Hydraulic brake, two-piston
  • Handlebar Clamp Size: GU-06/φ19*φ22.2*620mm alloy
  • Steering Stem Size: 28.6 mm
  • Seat Post Size: 27.2 mm

DETAILS

  • Rake 25 deg / 2.95 in
  • Overall Length: 57 in
  • Overall Width: 26 in
  • Overall Height: 31 in
  • Ground Clearance: 9 in
  • Seat Height: 25.6-33.5 in
  • Wheelbase: 32.75 in
  • Curb Mass: 41 lbs
  • Appropriate Rider's Age:8+ years old
  • Rider Weight (max) 110 lbs
  • Foot rest: Yes
  • Charging power source: 110-V Single Phase AC (Home)Charging connector Under the frame
View full details

SIZE & CONTROL

Find their starting fit.

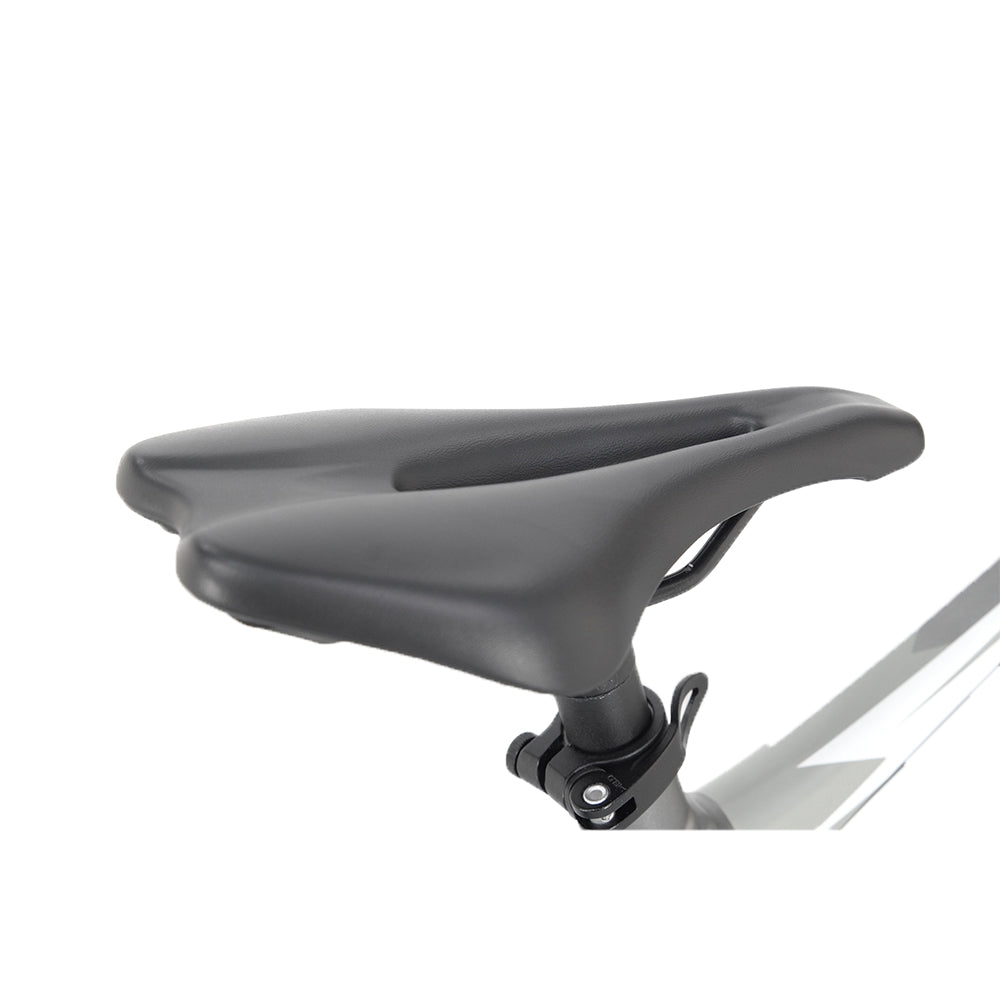

Start with seat height, ground reach and comfortable access to both brake levers. The adjustable saddle helps fine-tune fit; wheel size alone does not tell you whether the bike suits your rider. Match the power setting to their riding experience.

Seat height
25.6–33.5 inches
Top speed (stock)
~19 mph
Wheels
16 inches
Battery
36V

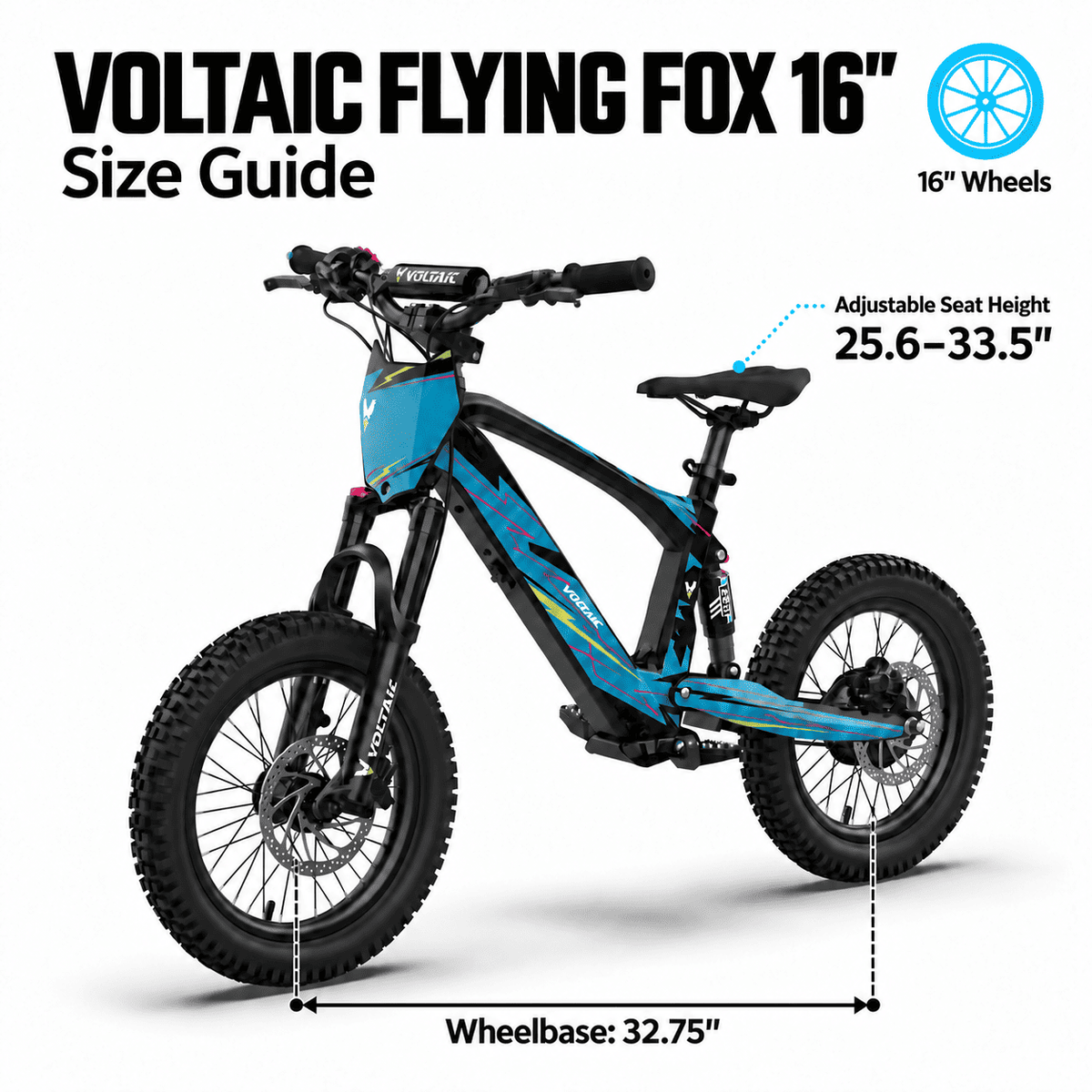

Current H&S Flying Fox 16-inch sizing illustration with seat-height and wheelbase labels
Check ground reach and control reach with the rider before their first ride.

THE DETAILS THAT MATTER

Take a closer look.

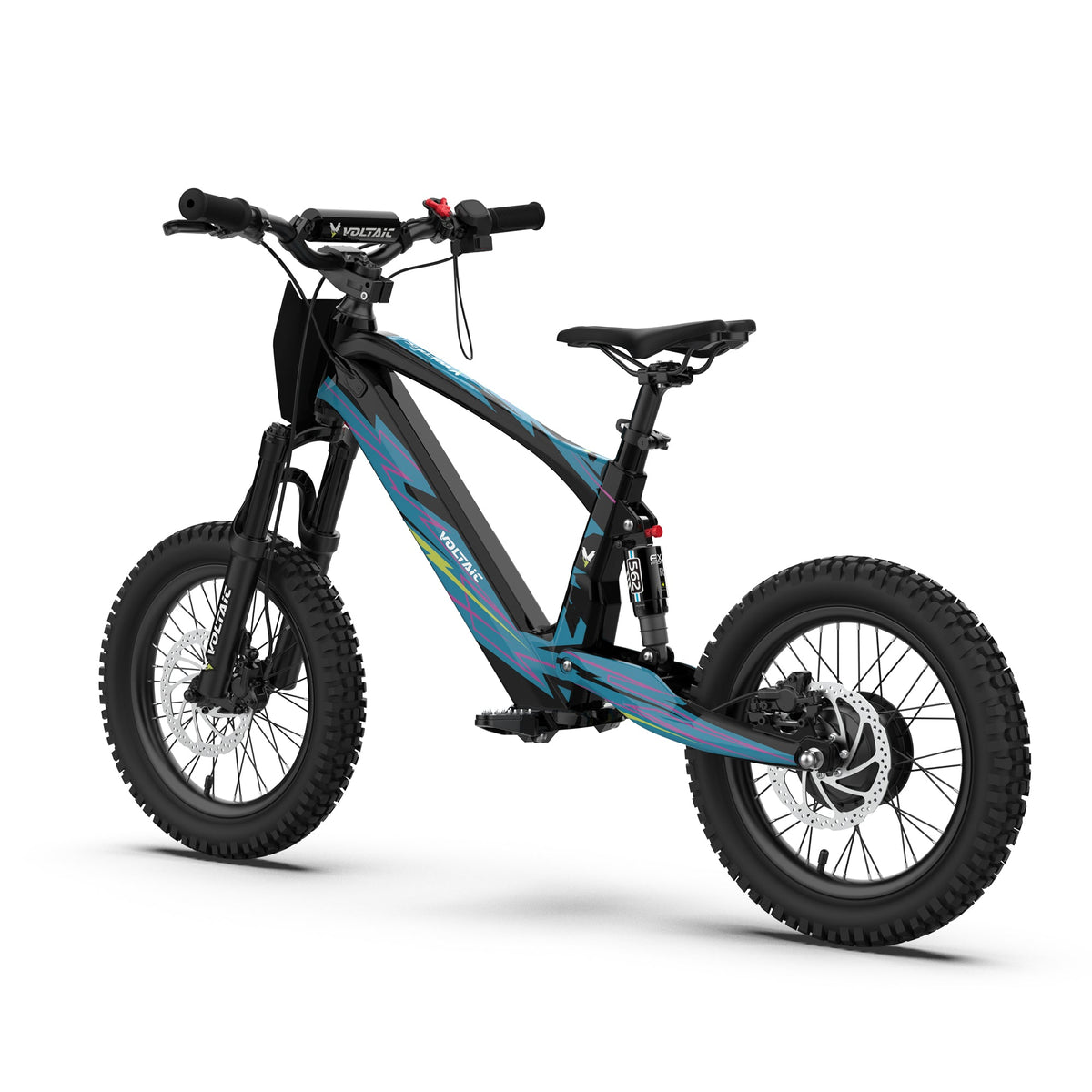

Blue Flying Fox 16-inch side angle showing the suspension fork and rear shock

Suspension front and rear.

A suspension fork and adjustable rear shock give the 16-inch Flying Fox a full-suspension chassis. Set the bike up for your rider’s weight and riding conditions.

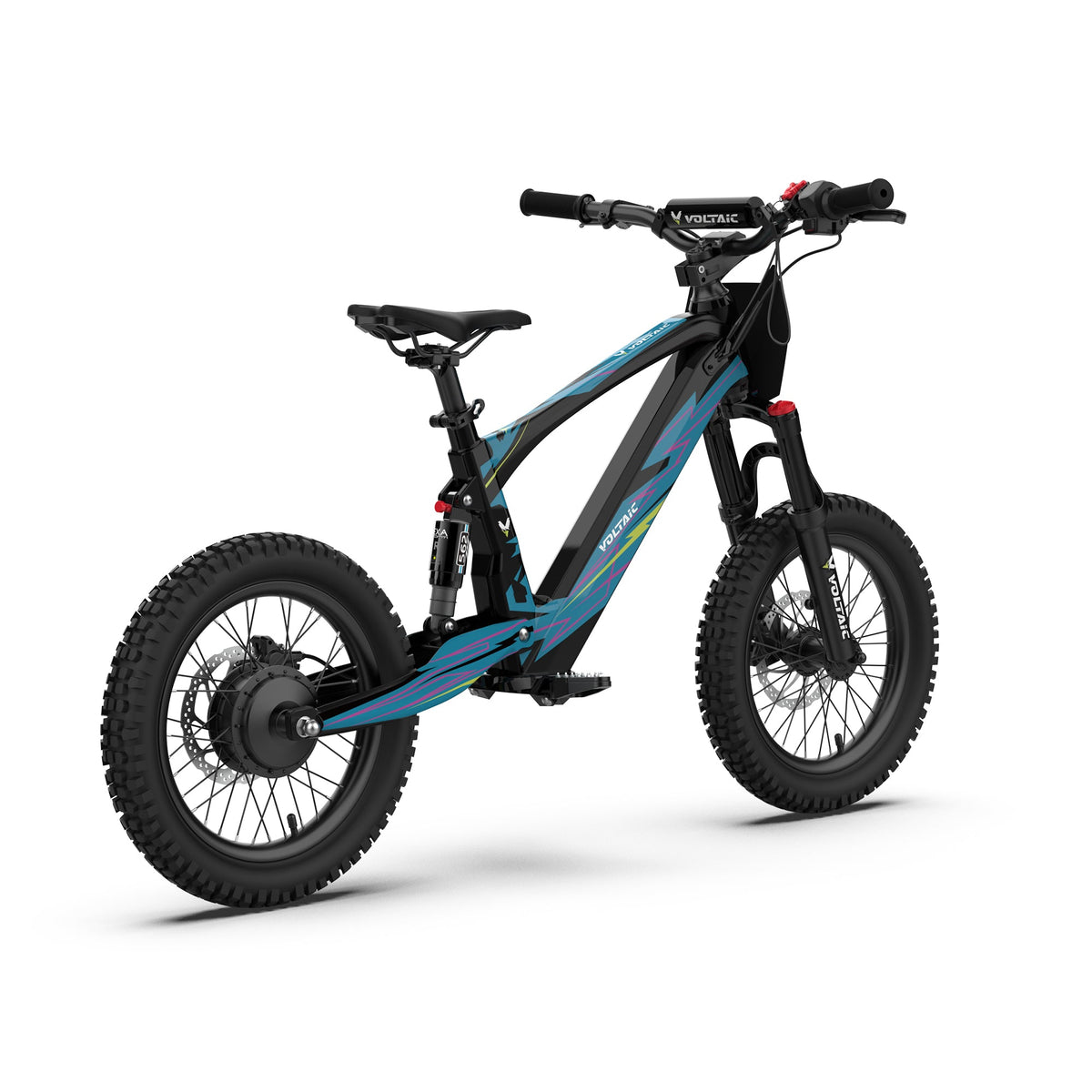

Blue Flying Fox 16-inch front three-quarter view

Hub drive. Three power modes.

The brushless motor is built into the rear wheel. Low, medium and high settings are listed at approximately 10, 14 and 19 mph, so an adult can choose the setting that suits the rider’s experience.

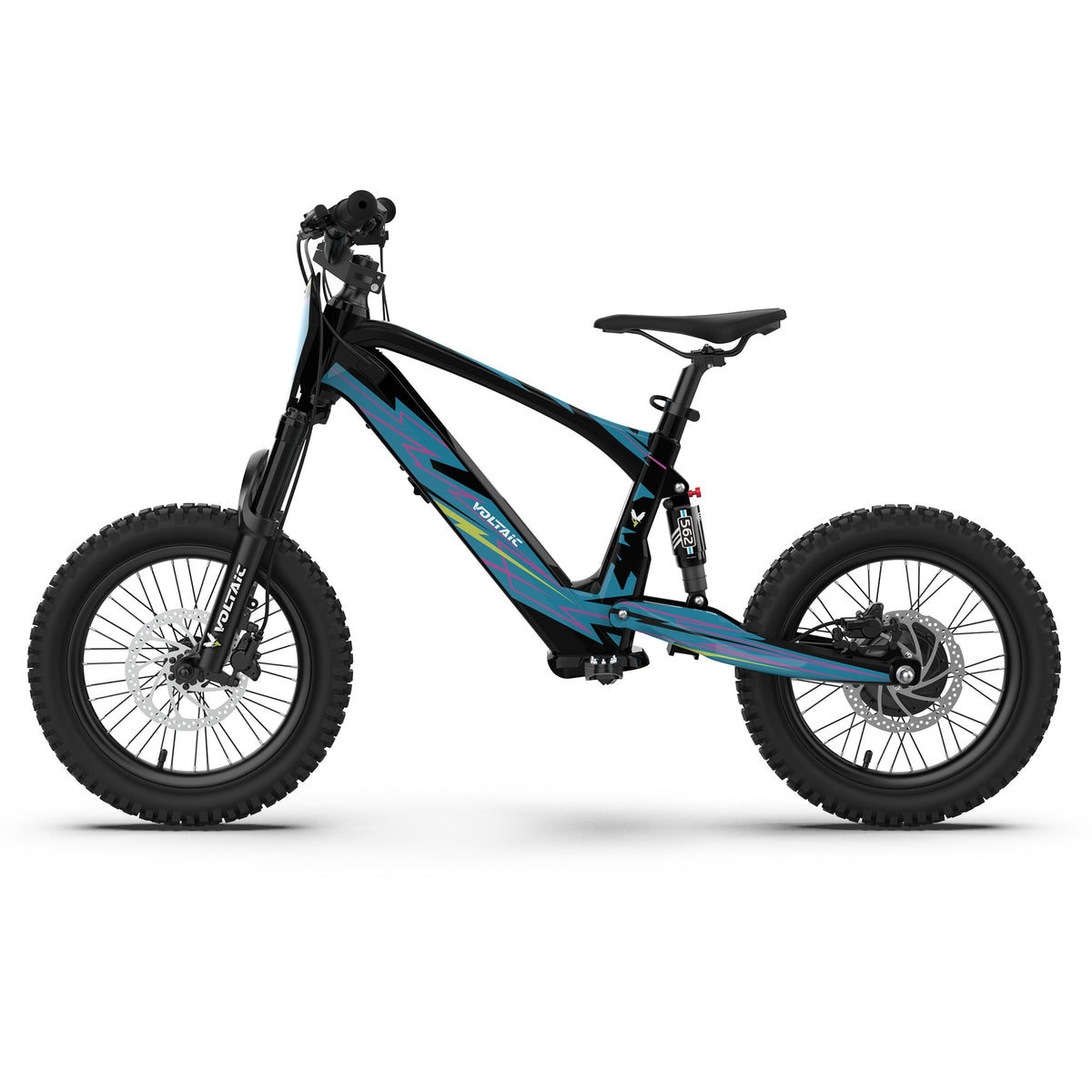

Blue Flying Fox 16-inch side view showing the disc brakes

Hydraulic brakes at both wheels.

Front and rear two-piston hydraulic disc brakes put braking control at the handlebars. Before riding, check that your little ripper can comfortably reach and operate both levers.

Rider-run support. Before and after the ride.

Tell H&S your rider’s height, inseam, current bike and riding experience. We can help compare these Flying Fox models and identify compatible replacement parts.
